This Truck Mounted Coiled Tubing Unit (CTU) Hydra Rig 480, which will have the capability of working with Coiled Tubing Strings of up to 1-1/2” diameter, used for:
Acid stimulation and acid squeeze jobs.
Run memory gauges.
Sand clean out jobs.
DST jobs for new wells.
The unit is designed for continuous use in ambient temperature ranges of 0°C to 50°C
in severe oilfield environments (i.e., rough or muddy and sandy terrains). This unit will be supplied with the following basic components:
One (1) Power Pack
One (1) Injector Head 80,000 lbs
One (1) Tubing Reel Assembly 15,000 ft
One (1) Control Panel Assembly
One (1) QUAD BOP
One (1) Stripper Assembly
Multi 4-1/16” flanged Riser.
Nitrogen / Pumping Combo Unit
Our combination nitrogen and fluid pumping was designed to meet a specific demand on many types of coiled tubing jobs, there are requirements for pumping both fluid and nitrogen.
Triplex fluid pump 3-3/8” plunger
Two centrifugal pumps and 10 BBL tank
Liquid nitrogen storage tank 2,000 US gal
Nitrogen boost and triplex pumps.
Water bath vaporizer.
Both the nitrogen and fluid sides of the unit are controlled from a common, climate-controlled cabin located on the unit.
The unit is on a purpose-built drop deck rail trailer for reduced weight.

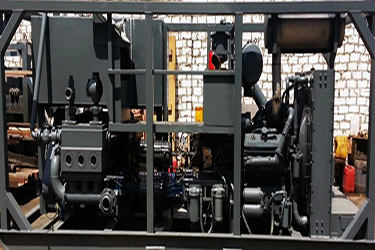

Dowel High Pressure Triplex Cement Pump
Max rate 8 BPM
Max pressure 10,000 psi with 8,000 psi working pressure
Skid mounted Dowell Schlumberger pump.
Pumps on skid mounted with lifting pad eyes
Delivers high pressure pumping services for operation.
Detroit Diesel engine drive 8V with 475hp.
HT-700 series transmission (hydraulic controls).

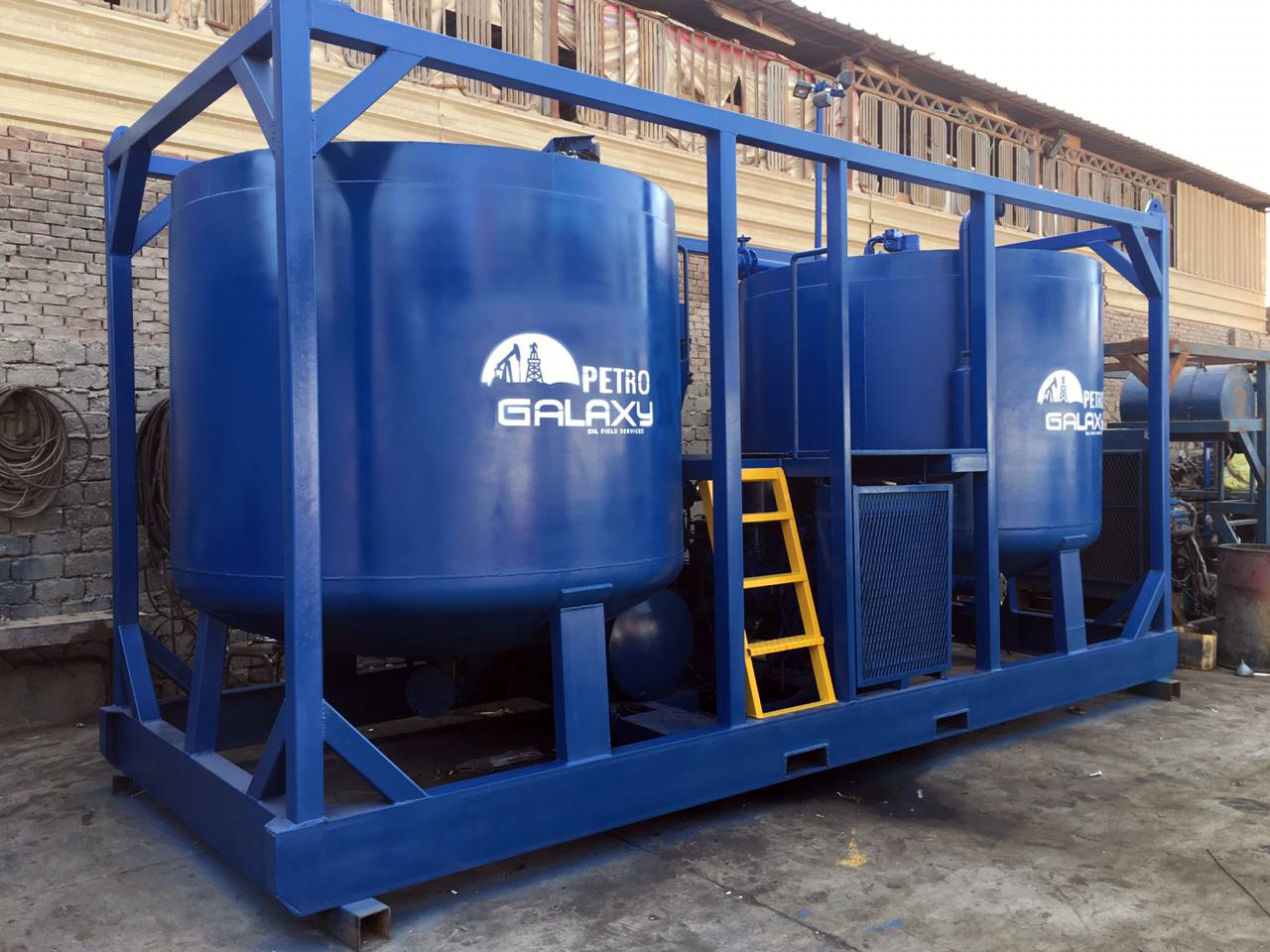

100 bbl 2 vesel 50 per each.

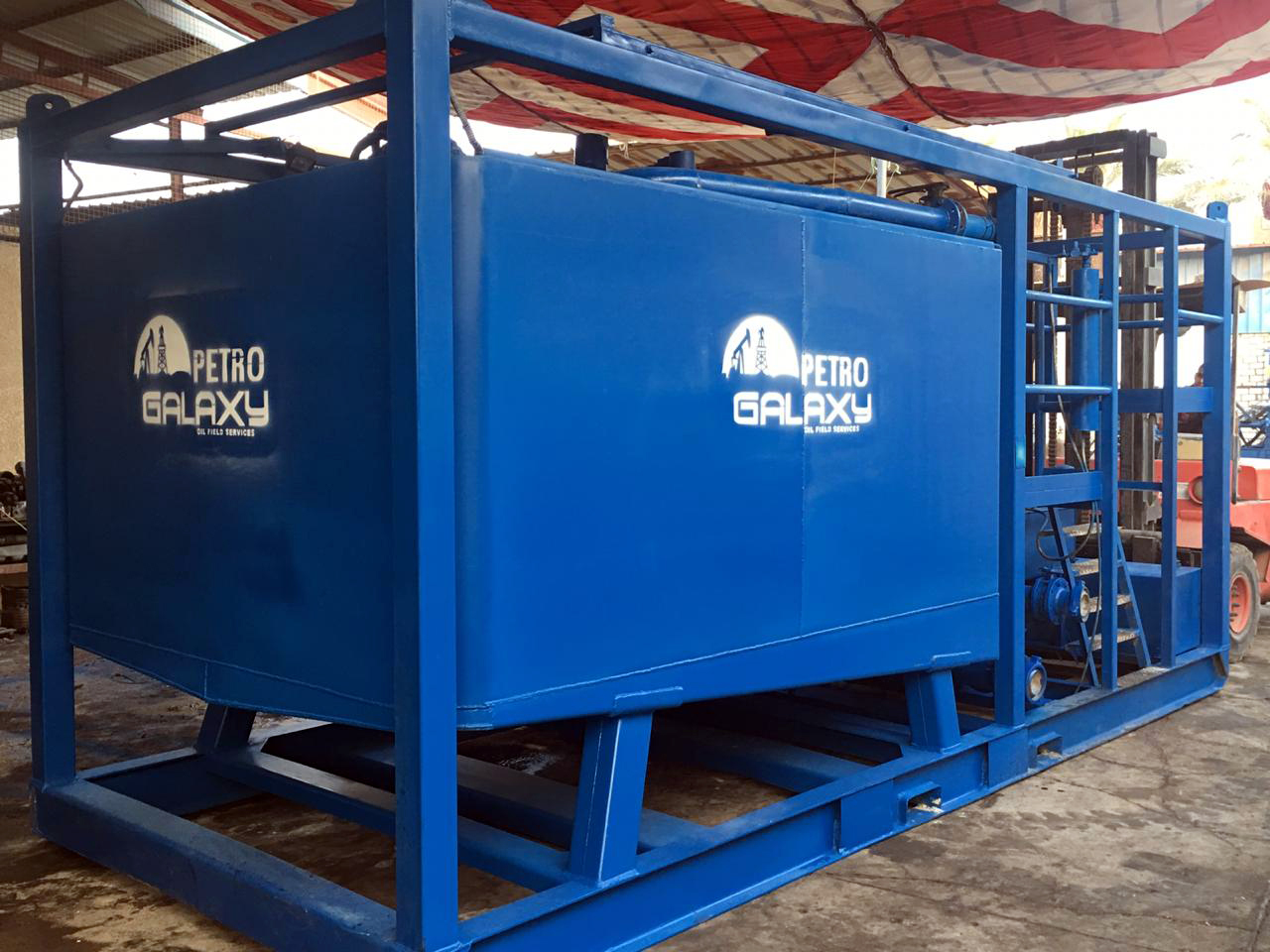

75 bbl one vesel.

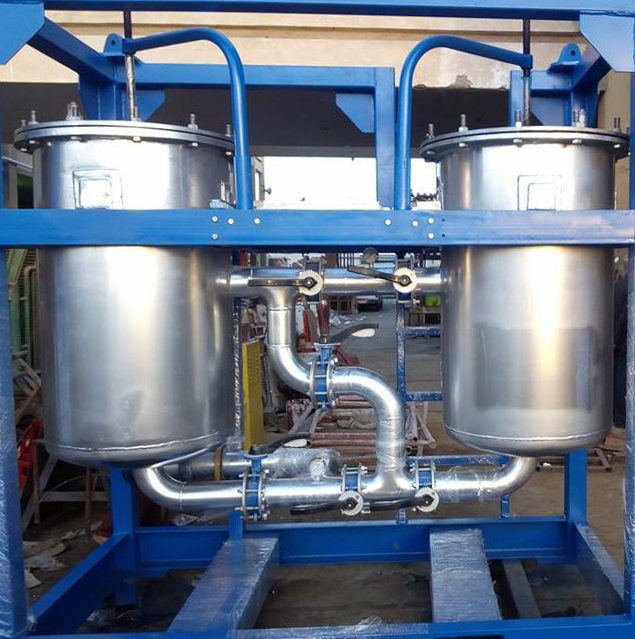

Stainless Steel Twin Filter
Our Dual Vessel Cartridge Un is the most commonly used filter cartridge unit in the oilfield industry. This, offshore proof, skid-mounted filter unit equipped with all necessary valves and safety features. Our Dual Vessel Cartridge Unit offers the most cost-effective way to clean-up all possible oilfield fluids. It allows you to simultaneously filter with one vessel and easily change the used cartridges.
High pressure flanged connection
Two each 24” stainless steel vessels.
Standard type: 50 cartridges per vessel.
Suitable for non-hazardous fluids (Fluid Group 2).
Innovative push lever and swing-away vessel lid, easy to operate.
